Spring 事务传播机制

1. 前言

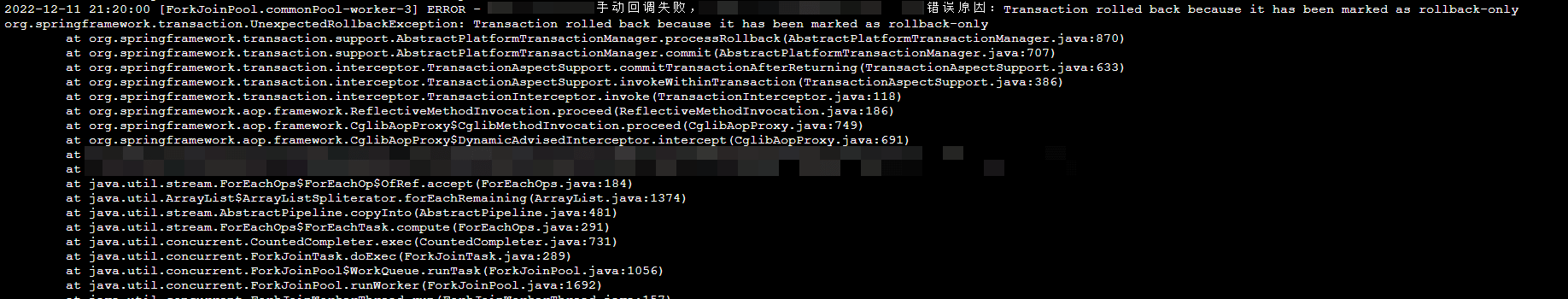

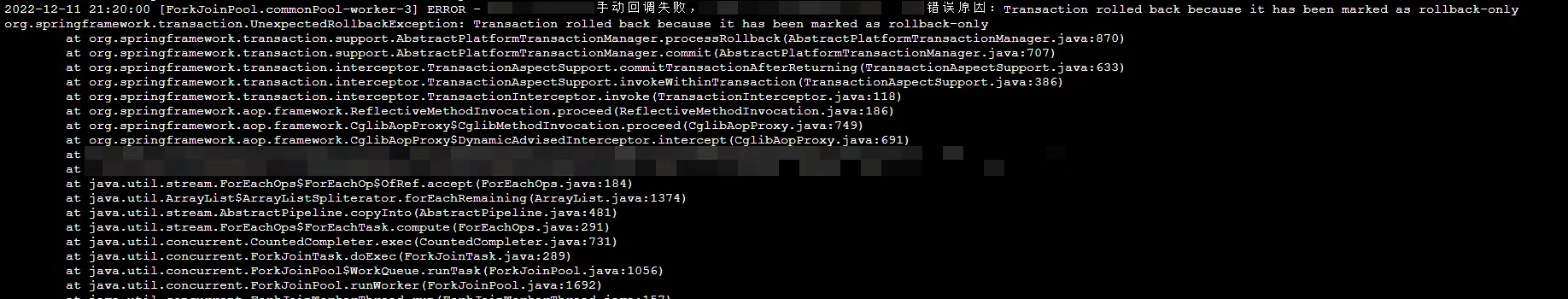

上周五项目服务器查看错误日志的时候，发现一个之前从没见过的错误：

根据日志找到相关代码，一番排查后才发现是事务嵌套导致的问题。简单来说就是有两个传播机制均为 REQUIRED 的事务 A 和 B，其中 A 事务中调用了 B 事务，但是外部是个循环，不能因为一次循环的失败导致整个循环失败，因此在调用的 B 事务被 try catch 包裹，导致内层的 B 事务抛出的异常在外层 A 事务这里被 try catch 吃掉了，异常无法继续往外抛，也就没法触发 Spring 的事务回滚而导致了上图的错误。

今天又复习了一遍事务的传播机制，写这篇文章来记录一下，加深记忆。

2. 七种事务传播机制

2.1. REQUIRED

默认的事务传播机制。支持事务。如果当前方法执行的时候已经在一个事务中了，则直接加入到当前事务中，否则就新开一个事务

例一：内层抛出异常，外层 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        try {
            contentService.saveContent(contentEntity);
        } catch (Exception e) {
            log.error("外层捕获异常");
        }
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：

抛出如下异常：
org.springframework.transaction.UnexpectedRollbackException: Transaction rolled back because it has been marked as rollback-only

content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例二：内层抛出异常，外层不 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例三：内层正常，外层抛异常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        int i = 1 / 0;
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

2.2. SUPPORTS

支持事务。如果当前有事务就直接加入当前事务，没有就直接执行，不开启事务

例一：内层抛出异常，外层 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        try {
            contentService.saveContent(contentEntity);
        } catch (Exception e) {
            log.error("外层捕获异常");
        }
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.SUPPORTS)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：

抛出如下异常：
org.springframework.transaction.UnexpectedRollbackException: Transaction rolled back because it has been marked as rollback-only

content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚，但是会抛出 rollback-only 的异常。

例二：内层抛出异常，外层不 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.SUPPORTS)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例三：内层正常，外层抛异常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        int i = 1 / 0;
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.SUPPORTS)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例四：内层报错，外层正常无事务

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Override
    public void createArticle() {
        baseMapper.insert(ArticleEntity.builder()
                .contentId(1L)
                .build());
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.SUPPORTS)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：新增一条数据
article 表：新增一条数据

结论：外层无事务，报错前的代码成功提交；由于外层无事务，所以内层也没创建新事物，因此内层报错前的代码也提交了。

2.3. MANDATORY

支持事务。如果当前方法已经在一个事务中，则加入到当前的事务中，否则抛出异常

例一：内层有事务抛出异常，外层有事务 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        try {
            contentService.saveContent(contentEntity);
        } catch (Exception e) {
            log.error("外层捕获异常");
        }
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.MANDATORY)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：

抛出异常：
org.springframework.transaction.UnexpectedRollbackException: Transaction rolled back because it has been marked as rollback-only

content 表：未新增数据
article 表：未新增数据

结论：外层有事务，内层方法调用时直接加入当前事务，内层报错，内外层事务均回滚，但是会抛出 rollback-only 的异常。

例二：内层有事务抛出异常，外层有事务不 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.MANDATORY)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例三：内层有事务正常，外层有事务抛异常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        int i = 1 / 0;
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.MANDATORY)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例四：内层有事务正常，外层无事务正常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Override
    public void createArticle() {
        baseMapper.insert(ArticleEntity.builder()
                .contentId(1L)
                .build());
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.MANDATORY)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：

抛出异常：
org.springframework.transaction.IllegalTransactionStateException: No existing transaction found for transaction marked with propagation 'mandatory'

content 表：未新增数据
article 表：新增一条数据

结论：由于外层方法没有事务，所以内层事务尝试加入外层事务失败抛出异常，而外层方法报错前的代码正常执行。

2.4. REQUIRES_NEW

支持事务。每次都会创建一个新的事务，如果当前已经在一个事务中，则会将当前事务挂起等新事物执行完成后再恢复

例一：内层抛出异常，外层 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        try {
            contentService.saveContent(contentEntity);
        } catch (Exception e) {
            log.error("外层捕获异常");
        }
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.REQUIRES_NEW)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：新增一条数据

结论：内层事务由于是新的一个事务，抛出异常事务被回滚；外层事务 try-catch 后不再往外抛出异常，因此事务不回滚，而是正常提交事务。

例二：内层抛出异常，外层不 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.REQUIRES_NEW)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均回滚。

例三：内层正常，外层抛异常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        int i = 1 / 0;
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.REQUIRES_NEW)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：正常
content 表：新增一条数据
article 表：未新增数据

结论：内层事务正常提交，外层事务抛出异常触发回滚。

2.5. NOT_SUPPORTED

不支持事务。如果当前存在事务，则挂起当前事务，等方法执行完毕后，事务恢复进行

例一：内层抛出异常，外层 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        try {
            contentService.saveContent(contentEntity);
        } catch (Exception e) {
            log.error("外层捕获异常");
        }
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NOT_SUPPORTED)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：新增一条数据
article 表：新增一条数据

结论：内层无事务，因此报错前的代码被提交；内层方法执行过程中，外层事务被挂起，抛出异常后虽然外层事务恢复，但是外层被 try-catch 了，因此外层代码也提交了并未回滚。

例二：内层抛出异常，外层不 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NOT_SUPPORTED)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：新增一条数据
article 表：未新增数据

结论：内层不支持事务，因此异常前的代码提交了；外层事务接收到内层方法抛出的异常，因此外层事务回滚。

例三：内层正常，外层抛异常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        int i = 1 / 0;
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NOT_SUPPORTED)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：正常
content 表：新增一条数据
article 表：未新增数据

结论：内层不支持事务正常提交，外层抛出异常触发事务回滚。

2.6. NEVER

不支持事务。如果当前存在事务则抛出异常

例一：内层抛出异常，外层正常有事务

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        baseMapper.insert(ArticleEntity.builder()
                .contentId(1L)
                .build());
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NEVER)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：

抛出异常：
org.springframework.transaction.IllegalTransactionStateException: Existing transaction found for transaction marked with propagation 'never'

content 表：未新增数据
article 表：未新增数据

结论：外层存在事务，因此内层不允许在有事务的环境下执行，直接抛出异常，因此内层方法未执行。外层方法接收到异常出发事务回滚。

例二：内层抛出异常，外层正常无事务

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Override
    public void createArticle() {
        baseMapper.insert(ArticleEntity.builder()
                .contentId(1L)
                .build());
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NEVER)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：新增一条数据
article 表：新增一条数据

结论：内层不支持事务，因此异常前的代码提交了；外层没有事务因此异常前的代码执行了。

2.7. NESTED

嵌套事务。如果当前已经在一个事务中，则嵌套在已有的事务中执行，内层事务执行完成后，还需要等着外层事务执行完成一起提交。如果当前没有事务，则直接开启一个新事务

例一：内层抛出异常，外层 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        try {
            contentService.saveContent(contentEntity);
        } catch (Exception e) {
            log.error("外层捕获异常");
        }
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NESTED)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：新增一条数据

结论：内层加入外层事务，抛出异常触发事务回滚。外层 try-catch 捕获了异常，因此外层代码正常提交。

例二：内层抛出异常，外层不 try-catch

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class)
    @Override
    public void createArticle() {
        baseMapper.insert(ArticleEntity.builder()
                .contentId(1L)
                .build());
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NESTED)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        int res = baseMapper.insert(contentEntity);
        if (res != 0) {
            throw new BizException("内层故意抛出异常");
        }
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内外层事务均因为异常触发事务回滚。

例三：内层正常，外层抛异常

外层：

@Slf4j
@Service("articleService")
public class ArticleServiceImpl extends ServiceImpl<ArticleMapper, ArticleEntity> implements IArticleService {
    @Resource
    private IContentService contentService;

    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NESTED)
    @Override
    public void createArticle() {
        ContentEntity contentEntity = ContentEntity.builder()
                .mdContent("# 一级标题")
                .htmlContent("<h1>一级标题</h1>")
                .build();
        contentService.saveContent(contentEntity);
        int i = 1 / 0;
        baseMapper.insert(ArticleEntity.builder()
                .contentId(contentEntity.getId())
                .build());
    }
}

内层：

@Slf4j
@Service
public class ContentServiceImpl extends ServiceImpl<ContentMapper, ContentEntity> implements IContentService {
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.NESTED)
    @Override
    public void saveContent(ContentEntity contentEntity) {
        baseMapper.insert(contentEntity);
    }
}

执行结果：

控制台：正常
content 表：未新增数据
article 表：未新增数据

结论：内层事务虽然正常执行完成，但是由于它属于外层事务的子事务，需要等待外层事务的提交，结果外层抛出异常触发事务回滚，导致内层事务也无法提交被回滚。

1. 前言

2. 七种事务传播机制

2.1. REQUIRED

2.2. SUPPORTS

2.3. MANDATORY

2.4. REQUIRES_NEW

2.5. NOT_SUPPORTED

2.6. NEVER

2.7. NESTED

0 条评论
